Dual gang slides for all your “pinch” needs.....

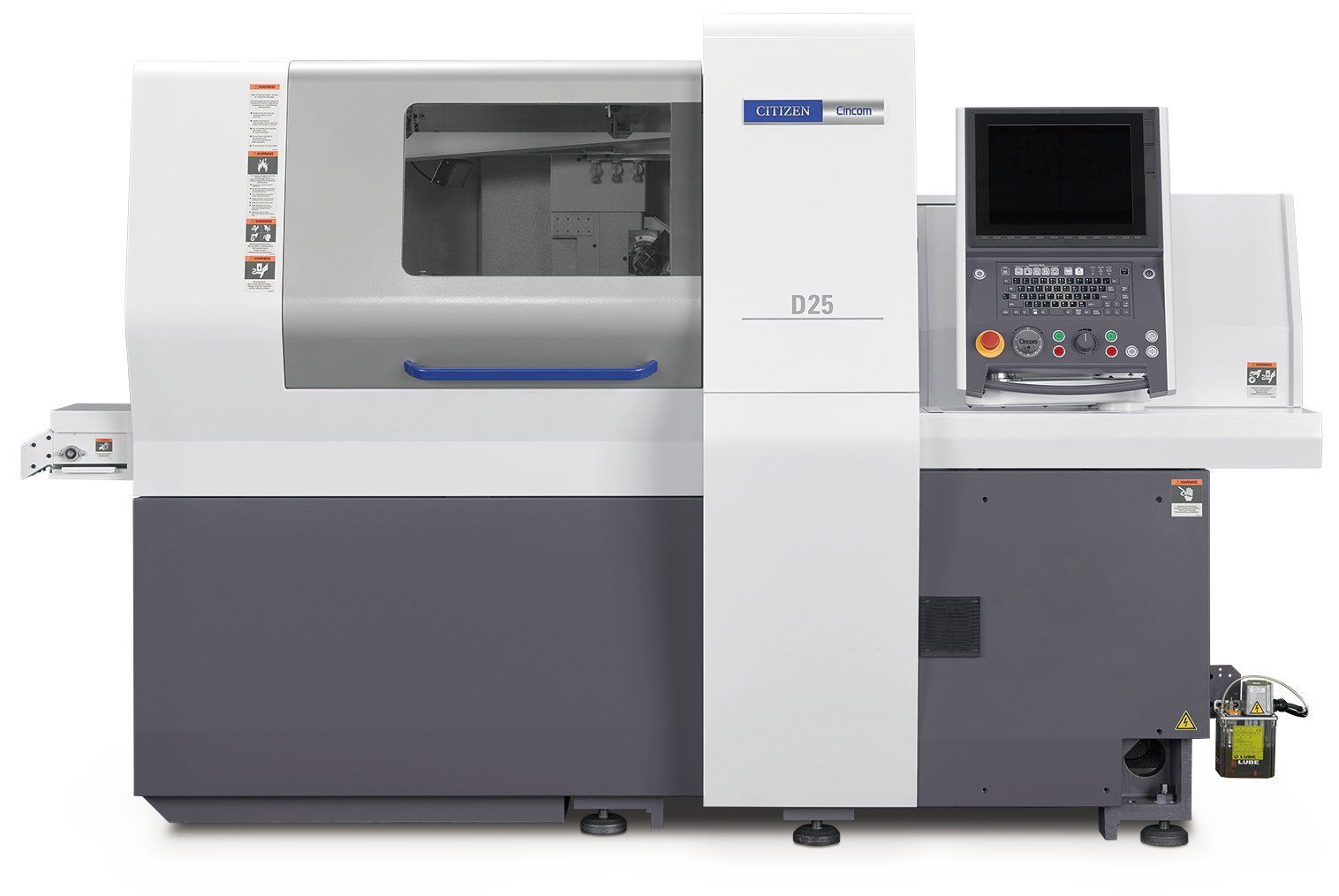

Introducing Citizen’s latest machine development - the D25VIII - equipped with independent double gang tool posts and B axis capability. The double gang layout enables short cycle times for high productivity at low part cost. The large number of tools, for both main and sub spindle, provides cost effective production of complex workpieces. The perfect machine for all your pinch turning, pinch milling, pinch drilling requirements!
Additionally, the Citizen Cincom D25VIII provides:
Next generation CNC system with touch screen and qwerty keyboard. Easy set up with on screen graphical prompts.
3 x Y axis, 3 x Z axis.
Live B axis tool block for programmable front-back machining.
Independent adjustable angle rotary tools to sub spindle.
Ideal combination of power and speed: 7+ hp and 10,000 rpm.
Up to 59 tools.
With/without guide bushing – convertible operation.
And now the Citizen Cincom D25VII is available for when “pinch” capability is a must but you don’t necessarily need a programmable B-axis tool block!
